夾緊力kN
手動扭矩Nm 標準型
3610V 3630V
14 2.9 2.9
27 7.8 7.8
41 9.9 9.9
54 13.4 13.4
68 17.0 17.0
81 19.7 19.7
95 24.6 24.6
108 28.3 28.3

夾緊力kN
液壓MPa 液壓型
3610H 3630H
3 7 7
6 14 14
8 21 21
11 28 28
14 35 35
17 42 42
19 49 49
22 56 56
液壓排量CC 19 19

注：夾緊力為參考值


夾緊力kN
氣壓Bar 氣動型
3610A 3630A
0.7 1.4 1.4
1.4 3.7 3.7
2.1 5.7 5.7
2.8 7.9 7.9
3.5 9.8 9.8
4.1 12.1 12.1
4.8 14.4 14.4
5.5 16.9 16.9
6.2 19.4 19.4
6.9 22.2 22.2

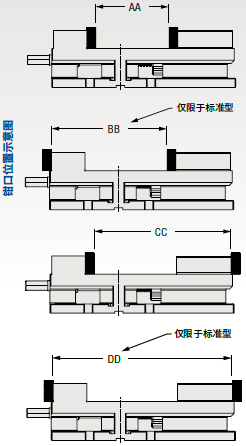

參數(shù)表 mm(in)
標準型 液壓型 氣動型
3610V 3630V 3610H 3630H 3610A 3630A
A 80.95 80.95 80.95 80.95 80.95 80.95
B 152.40 152.40 152.40 152.40 152.40 152.40
C 382.52 328.68 382.52 328.68 382.52 328.68
D 69.85 69.85 69.85 69.85 69.85 69.85
E 17.48 17.48 17.48 17.48 17.48 17.48
F 37.72 37.72 37.72 37.72 37.72 37.72
G 69.85 69.85 69.85 69.85 69.85 69.85
H 44.07 44.07 44.07 44.07 44.07 44.07
J 18.42 18.42 18.42 18.42 18.42 18.42
K 114.30 114.30 114.30 114.30 114.30 114.30
L 57.15 57.15 57.15 57.15 57.15 57.15
M 127.00 127.00 127.00 127.00 127.00 127.00
N 23.80 23.80 23.80 23.80 23.80 23.80
O 98.43 98.43 98.43 98.43 98.43 98.43
P (1/2-13) (1/2-13) (1/2-13) (1/2-13) (1/2-13) (1/2-13)
Q 50.80 50.80 50.80 50.80 50.80 50.80
R 107.95 107.95 107.95 107.95 107.95 107.95
S 76.20 76.20 76.20 76.20 76.20 76.20
T 35.03 35.03 35.03 35.03 35.03 35.03
U 16.00 16.00 16.00 16.00 16.00 16.00
V 49.28 49.28 49.28 49.28 49.28 49.28
W (3/4) (3/4) (3/4) (3/4) (3/4) (3/4)
X 143.26 143.26 143.26 143.26 143.26 143.26
Y 16.00 16.00 16.00 16.00 16.00 16.00
Z 152.40 152.40 152.40 152.40 152.40 152.40
AA 152.40 101.60 152.40 101.60 152.40 101.60
BB 241.30 190.50 - - - -
CC 285.75 234.95 285.75 234.95 285.75 234.95
DD 374.70 323.90 - - - -
EE - - 61.21 61.21 - -
FF - - 49.28 49.28 - -
GG - - 85.73 85.73 - -
HH - - - - 183.39 183.39
JJ – – – – (2.100) (2.100)
KK – – – – (1.030) (1.030)
LL – – – – (5.000) (5.000)
MM (2.500) (2.500) (2.500) (2.500) (2.500) (2.500)
NN (0.344) (0.344) (0.344) (0.344) (0.344) (0.344)
OO (1/2) (1/2) (1/2) (1/2) (1/2) (1/2)
PP (0.671) (0.671) (0.671) (0.671) (0.671) (0.671)
QQ (0.625) (0.625) (0.625) (0.625) (0.625) (0.625)
RR 16MM 16MM 16MM 16MM 16MM 16MM
SS (4.000) (4.000) (4.000) (4.000) (4.000) (4.000)
TT (6.000) (6.000) (6.000) (6.000) (6.000) (6.000)
UU 100MM 100MM 100MM 100MM 100MM 100MM
重量kg 32 29 34 32 34 32

KHP3H，見第74頁
KHP3F，見第74頁
自動化泵，見第74頁
